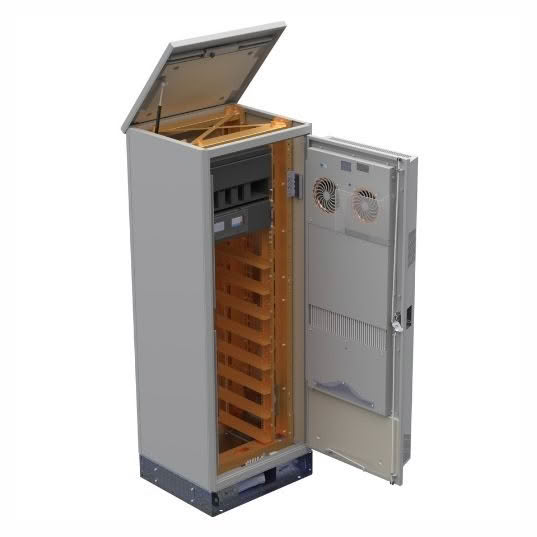

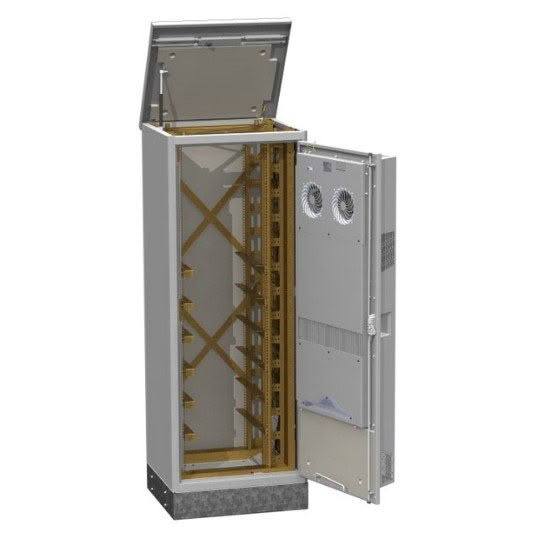

Single door outdoor battery power cabinet (750W × 650D × 2050H), approx. 41RU, designed for telecommunications and infrastructure applications.
Featuring a heat exchanger (HEX) door with 4 fans, flush front locking system, generator extension, and seismic-rated construction, with optional 150 mm HDG plinth and selectable Seismic Category 1 (ESAP31) or Category 2 (ESAP11).
| Width | 750 |
|---|---|
| Depth | 650 |
| Height | 2050 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | |
| Additional Features |
This single door outdoor battery power cabinet (750W × 650D × 2050H) is engineered for telecommunications and infrastructure applications requiring integrated power systems and reliable environmental protection. With an approximate 41RU single-bay configuration, it provides secure housing for battery systems and associated equipment in outdoor deployments.
The cabinet is fitted with a heat exchanger (HEX) door incorporating 4 fans, delivering efficient closed-loop cooling. This system dissipates heat while preventing external air from entering the enclosure, maintaining a clean, stable internal environment that is critical for battery performance and lifespan.
A built-in generator extension supports backup power integration, making the cabinet suitable for remote or critical sites where continuity of operation is essential.
Constructed from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the cabinet is designed for long-term durability in harsh outdoor conditions. It supports high ingress protection (up to IP66 depending on configuration), ensuring reliable protection against dust and moisture.
Security is provided through a flush front locking system with three-point locking, offering a clean external profile and controlled access to internal equipment.
An optional 150 mm hot-dip galvanised (HDG) plinth is available, providing elevated ground clearance, improved cable entry management, and protection against ground-level moisture and environmental exposure.
Seismic configuration options
The cabinet is available in two seismic-rated configurations to suit different installation requirements:
